應用：石油和天然氣工業、海上鑽井、公用事業和電力、石化產業、城市用水和廢水處理、食品和飲料生產

特色：非侵入式校準、智能傳感器

偵測原理：Electrochemical／IR／Catalytic

偵測氣體：CO／NO／NH3／H2S／SO2／NO2／Cl2／ClO2／HCN／O2／Methane by LEL／Pentane by LEL／CO(null H2)／HCl／PH3／H2／Methane(by vol.／byLEL)／Propane／Pentane／Butane／Hexane／CO2 (0 0.5%)(0 5%)(0 ~ 100%)

訊號輸出：4 ~ 20 mA／RS-485 Modbus (9600 baud)

材質：Epoxy Coated Aluminium or 選購316 Stainless Steel

顯示規格：4 digit, 7 segment arrangement per channel LED display

輸入電壓：12 ~ 28V DC operating range (24VDC typical)

耗電量：250mA@24VDC (Combustible gases catalytic); 0.8A peak (single gas)

防護等級：NEMA 4X, IP66

濕度範圍：10-90% RH (non-condensing), typical

溫度範圍：-40 to +75℃ (Sensor Specific)

尺寸：127 x 153 x 129 mm (5.0" x 6.0" x 5.1"), 2.9 Kg (6.4 lbs)

線材：3-wire or 4-wire active and shielded

Maximum Cable Loop: 15 Ohm (3-wire configs) or 10 Ohm (4-wire configs)

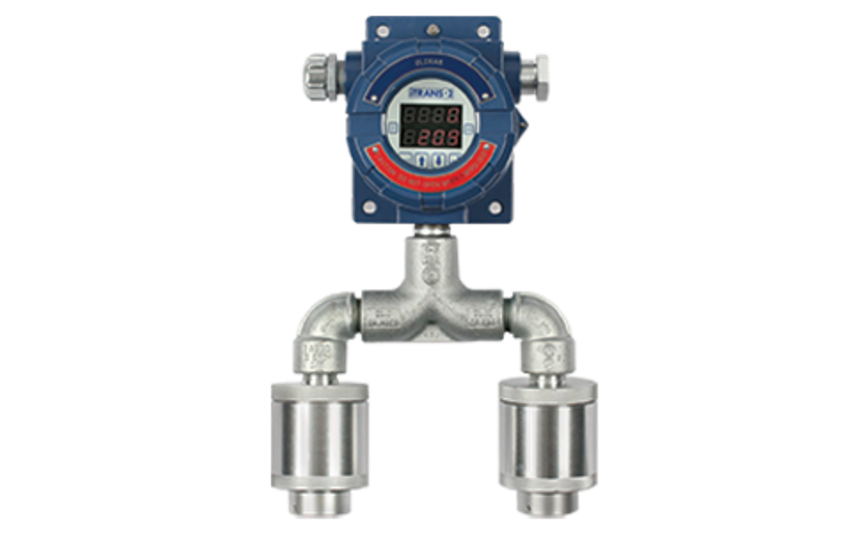

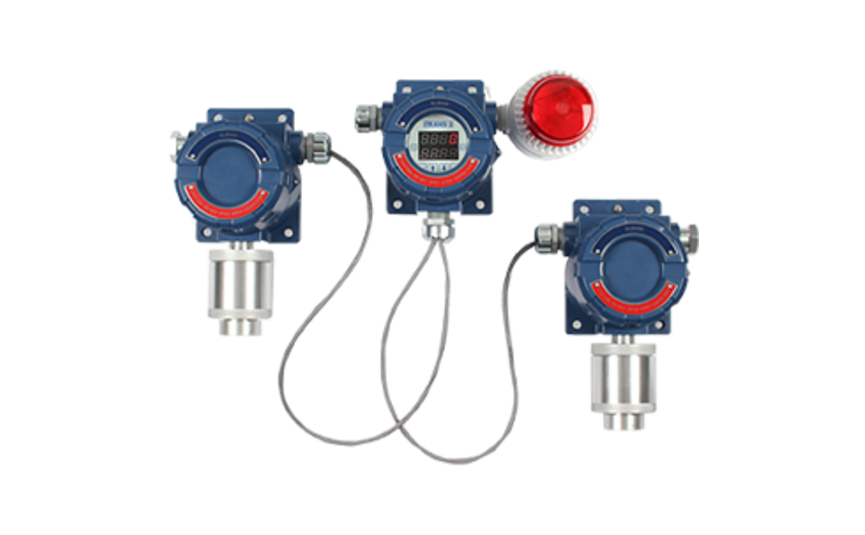

可加購雙SENSOR、316SS外殼、遠端感知（最長200m）、HART™通訊、可編程繼電器、雙重氣體檢測（CSA certified only）

認證 (Sensor Specific): ATEX and IECEx II 2G - Ex d IIB + H2 T5 (2)
